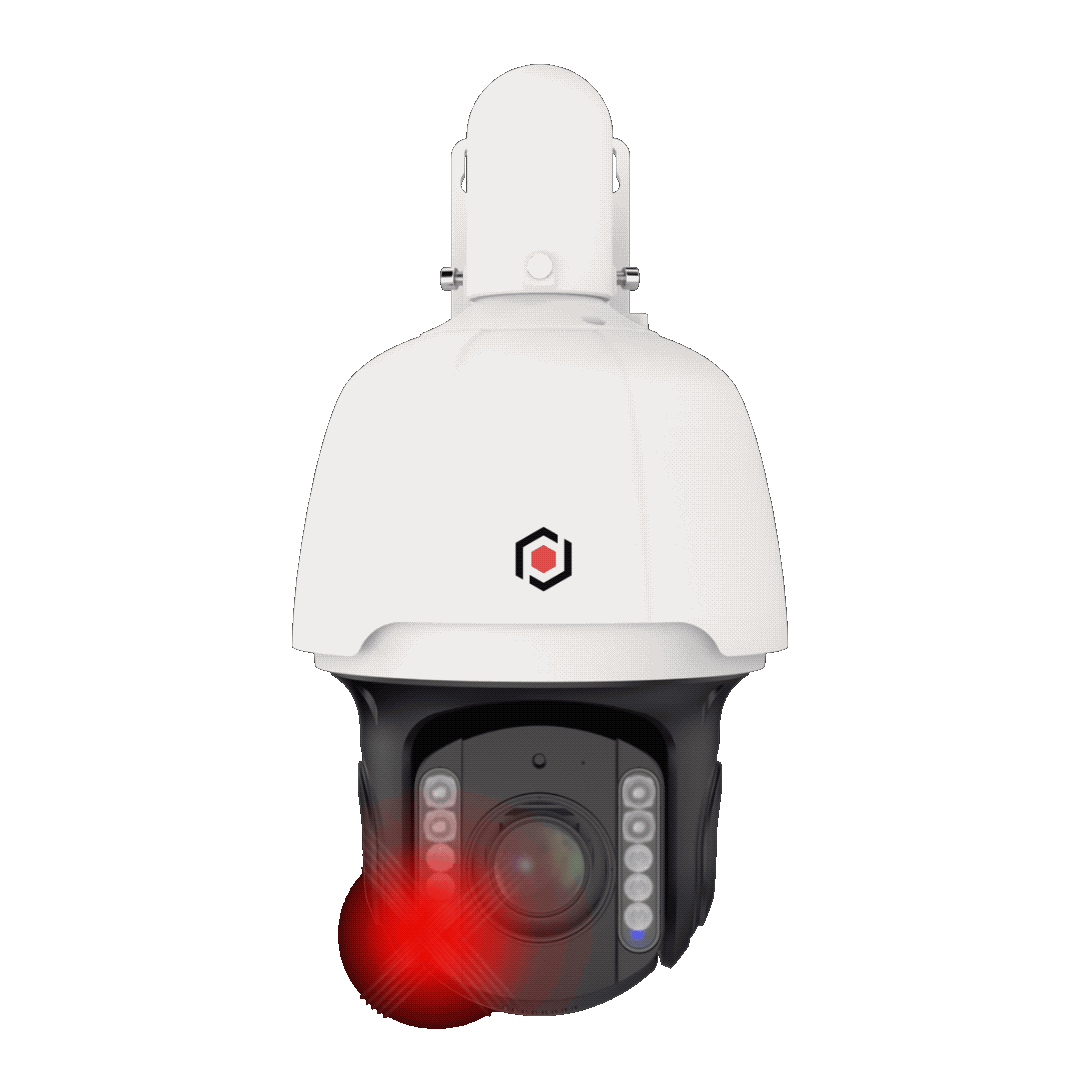

XPTZ37XIP8MP-AI-N

https://gsdgroup.odoo.com/web/image/product.template/128/image_1920?unique=1e20b94
  • Icon Deterrence Lights and siren
  • Icon True WDR
  • Icon 8MP RESOLUTION
  • Icon MICRO SD CARD SLOT UP TO 256 GB
  • Icon SEE IN COLOR AT NIGHT
  • Icon IMPACT RESISTANT
  • Icon WATERPROOF & DUST-TIGHT
  • Icon ALARM/AUDIO IN/OUT
  • Icon TWO-WAY COMMUNICATION
  • Icon AUTO-TRACKING
  • Icon 37X OPTICAL ZOOM 16X DIGITAL ZOOM
  • Icon 5.5-202MM LENS
  • Icon IR UP TO 200M
FIND A DISTRIBUTOR FIND AN INSTALLER
NDAA Onvif GST CE FCC
Download the Smart Guardian App
APP STORE GOOGLE PLAY
(0 review )

XPTZ | 8MP | LENS 5.5-202MM MOTO | TOTAL VIEW | 360 DEGREES | ALARM AUDIO IN/OUT | SPK/MIC/DET | A.I | IK10 | IP67 | NDAA

PRODUCT SPECIFICATIONS

Image Sensor 1/1.8” progressive scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination 0.0005Lux @ (F1.6, AGC ON), B/W
Shutter Speed 1/5 s to 1/20000 s
Slow Shutter Yes
Day & Night IR cut filter
Zoom 37 × optical, 16 × digital
Focal Length 5.5 mm to 202 mm
FOV 60° to 2.31° (wide-tele) Vertical field of view
Aperture Max. F1.6
Focus Auto, semi-auto, manual
Supplement Light Range up to 25 m, IR
Supplement Light Type Hybrid (IR and White Light)
Movement Range(PAN) 360°
Movement Range(TILT) -20° to 90° (auto flip)
Pan Speed 200°/s
Tilt Speed Configurable from 0.6° to 90°/s, preset speed 100°/s
Proportional Pan Yes
Presets 255
Patrol Scan 4 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-Off Memory Yes
Park Action Preset, pattern scan, auto scan, patrol scan
3D Positioning Yes
PTZ Status Display Yes
Scheduled Task Preset, pattern scan, patrol scan, auto scan
Main Stream 25 fps (3840 × 2160, 3072 x 1728, 2592 x 1944, 2592 x 1520, 2304 x 1296, 1920 x 1080, 1280 × 960, 1280 × 720); 60 Hz
Sub-Stream 25 fps (1920 x 1080, 1280 × 720, 640 × 480, 320 × 240); 60 Hz
Third Stream 25 fps ( 640 × 480, 320 × 240); 60 Hz
Video Compression H.265+/H.265/H.264+/H.264 Sub-stream
Video Bit Rate 16 kbps to 16384 kbps
H.264 TYPE Baseline Profile/Main Profile/High Profile
H.265 TYPE Main Profile
Region Of Interest (ROI) 8 fixed regions for each stream
Audio Compression G.711alaw, G.711ulaw
Audio Bit Rate 64 Kbps (G.711)
Audio Sampling Rate 8 kHz
Environment Noise Filtering Yes
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Protocols IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE, RTMP
API Onvif ( Profile S, Profile G, Profile T),Http API
Simultaneous Live View Up to 20 channels
User/Host administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, IP address filter,control timeout settings
Client VMS
Web IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Wide Dynamic Range (WDR) 120 dB
DEFOG Digital defog
Image Stabilization DIS
Image Setting Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Privacy Mask 8 privacy masks
SNR > 52 dB
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in SD card slot, support microSD/SDHC/SDXC card, up to 256 GB
Alarm 1 input, 1 output
Audio 1 input (line in); 1 output (line out)
Reset Yes
Built-In Microphone 1 built-in microphone
Built-In Speaker 1 built-in speaker
Power 36VDC / IEEE802.3bt(PoE++)
Operating Conditions -40 °C to 65 °C (-22 °F to 149 °F) Humidity 90% or less (non-condensing)
Demist Yes
Material Metal
Dimensions Ø 206.4 mm × 337.3 mm (Ø8.13” × 13.27”)
Weight 1035g)
Protection IP67, IK10
Basic Event Motion detection, video tampering alarm, alarm input and output
Deep Learning Function Face Recognition, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection
Smart Tracking auto-tracking
Alarm Linkage Upload to FTP, send email, trigger alarm output, trigger recording

DOWNLOAD

FIRMWARE
V46_Firmware_46.55.8.2.4.4_2024-12-10 Download
DATA SHEET
EN_DATASHEET_XPTZ37XIP8MP-AI-N_2024-10-25.pdf Download
FR_DATASHEET_XPTZ37XIP8MP-AI-N_2024-10-25.pdf Download
BROCHURES
EN_BROCHURE_PTZ COMAPRISON CHART_2025-04-14.pdf Download
FR_BROCHURE_PTZ COMAPRISON CHART_2025-04-14.pdf Download
