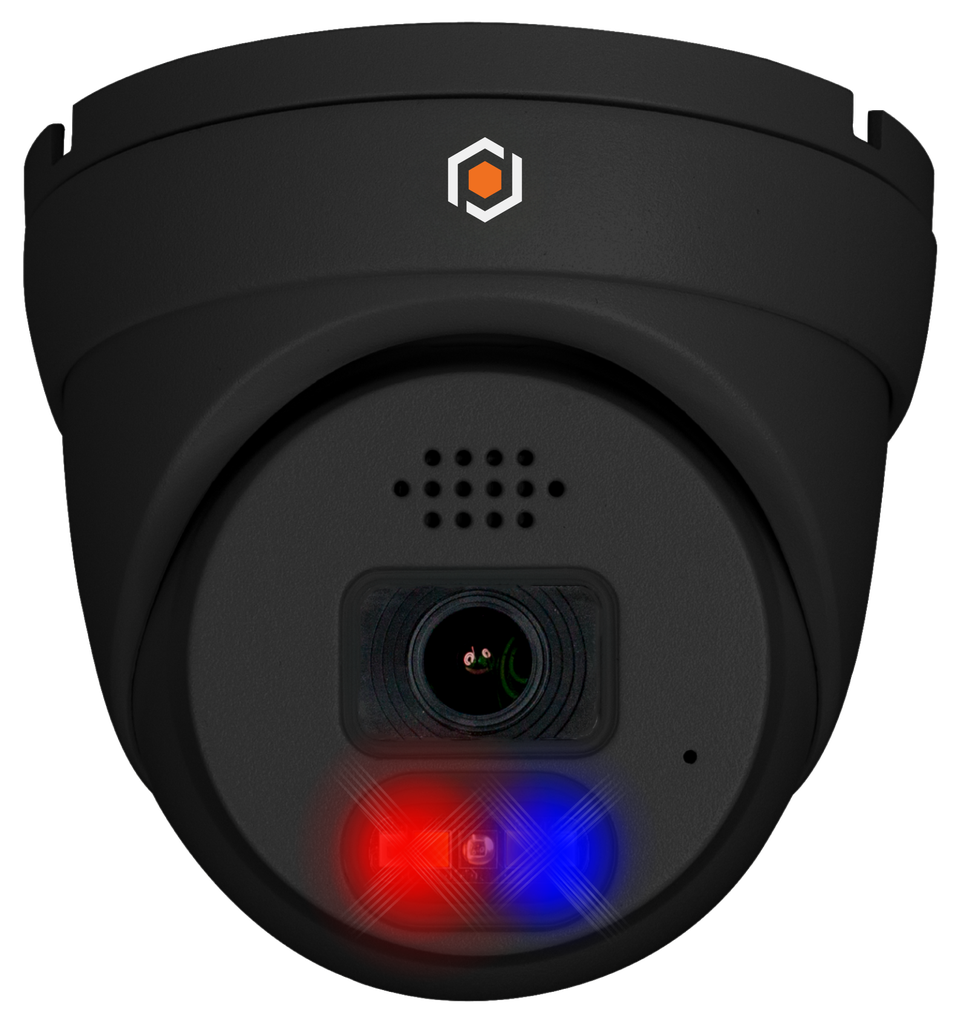

SEE IN COLOR AT NIGHT
PRODUCT SPECIFICATIONS
| OPERATIONAL | |
| IR LED | 1 |
| Warmlight | 2 |
| Red & Blue Light | 2 (1 Red & 1 Blue) |
| IR Viewable Length | Up to 25m |
| Warmlight Viewable Length | Up to 20m |
| Type Of Complementary Light | Default warm light, switchable infrared light |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | Off/On (8 Levels) |
| Image Setting | Full Color Mode/Day&Night Mode/Smart IIIumination |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Alarm | Speaker, siren |
| Audio | Built-in microphone & speaker |
| Hardware Reset | Yes |
| Smart Features | Perimeter Intrusion Detection (PID), Line Crossing Detection (LCD), Intrusion Detection (ID), Region Entry and Exiting |
| NETWORK | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution | 4MP(2560x1440) Sub Stream@25fps |
| Video Quality Adjustment | 512Kbps ~ 4Mbps |
| Bitrate Control Method | CBR/VBR |
| IP | IPv4 |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,HTTPS |
| Security | Complicated password; Authenticated username and password |
| Application Programming Interface | ONVIF( Profil S/G/T) |
| Compatible Web Browsers | IE10/11 |
| GENERAL | |
| Operating Conditions | -35°+60°C/ Less than ≤ 95% RH |
| Ingress Protection | IP67 |
| Input Voltage / Current | D12V/POE (IEEE802.3af) |
| Power Consumption | max 7.5W |
| Color/material | White/Metal |
| Dimensions (LXHXP) | 100*100*90mm |
| Weight | 320g |
| LENS | |
| Focal Length (Zoom Ratio) | 2.8 mm |
| Max. Aperture Ratio | F No. 1.0 |
| Angular Field Of View | 95°, Vertical |
| Min. Object Distance | 2m |
| Lens Type | Fixed (M12) |
| VIDEO | |
| Imaging Device | 1/3” |
| Effective Pixels | 4MP 2560(H)×1440 (V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.002 Lux @ (F1.0, AGC ON) ; B/W 0 lux @ IR ON |
| COLOR | |
| Color | BLACK , WHITE |
