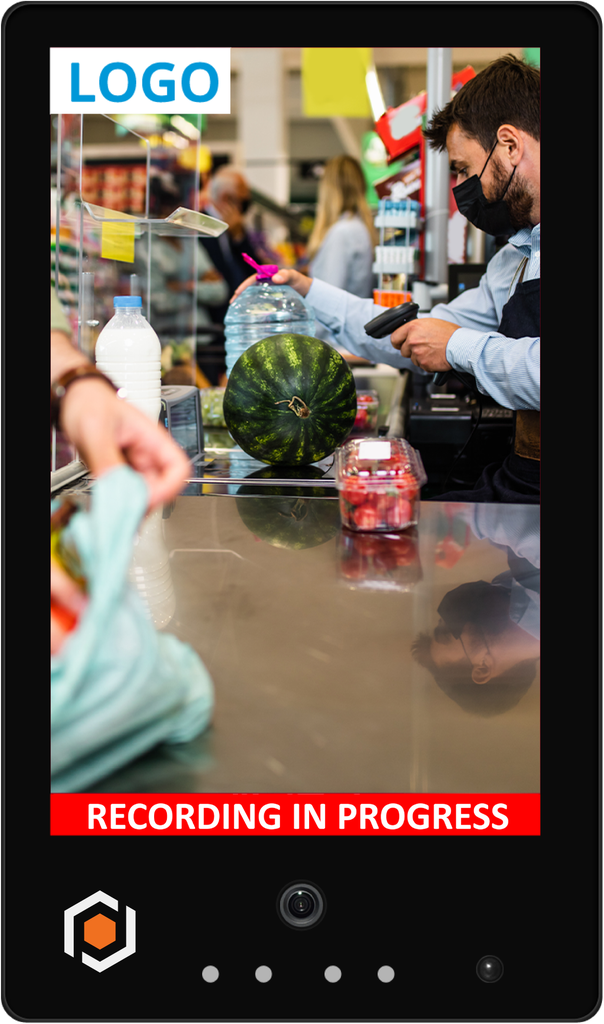

MONPVM-10
-
10.1” IK7 TEMPERED GLASS
-
CUSTOMIZABLE DISPLAY
-
WIFI & RJ45 CONNECTION
-
DC 12/24V OR POE POWERED
-
CUSTOM ADVERTISEMENT DEPLOY VIA MANAGEMENT SOFTWARECUSTOM ADVERTISEMENT DEPLOY VIA MANAGEMENT SOFTWARE
-
RECORD DIRECTLY ON LOCAL NVR OR INTEGRATED 1TB SD CARD
-
BUILT TO RUN 24/7 OR WITH CUSTOMIZED WORK SCHEDULE
Download the Smart Guardian App
PRODUCT SPECIFICATIONS
| NETWORK | |
| Resolution | 1280x800 |
| Video Output | RJ 45x1 10M/100M |
| GENERAL | |
| ONVIF | Profile S |
| Dimensions | 251x199x25mm |
| Weight | 1.6KG |
| Vesa Size | 75x75mm(M4xL10 Screws) |
| Operating Temp. | 0~ 50°C |
| Power | DC12V&POE (<12W, IEEE802.3af) |
| THERMAL MODULE | |
| Max. Resolution | 1920x1080 |
| Network Cameras | |
| Lens | Fixed 3.3mm Lens(No Image Distortion) |
| Speaker | Built-in 3W |
| INTEGRATION | |
| Web Browser | IE, Chrome, Firefox, Safari |
| PERFORMANCE | |
| DDR | 1GB |
| DISPLAY | |
| Screen Size | 9 Aspect Ratio |
| Brightness | 250cd/m2 |
| Contrast Ratio | 1 |
| Viewing Angle | 170/170 |
| Display Color | 16.7M |
| Response Time | <16ms |
| LED Light | Support (White and Blue Deterrence) |
| BUILT-IN NDAA IP CAMERA | |
| Solution | 2MP CMOS+8MP AI Chipset |
| EMMC | 8GB |
| H.264&265 | Yes |
| AI Function | Face Detection |
| PIR Sensor | Yes |
| RECORDING | |
| Recording | Motion/Video Blind/Face/PIR Detection |
| TF Card Slot | 1TB Max for Remote Recording |
| Branding Logo | PNG Picture ALWAYS Show on PVM |
| Deterrence Message | PNG Picture Based Pop-up When Event Triggered |
| Deterrence Audio | WAV |
| Wi-Fi | Support, 2.4GHz, Auto On |
| PIP/PBP | Yes |
| Multimedia Playing | JPG/PNG/BMP/GIFVideo |
| Display Modes | Full AD/Full IP Video/Banner/Switch(When Faces Detected) |
| Banner Mode Ratio | 800x800 AD |
| PVM Interfaces | DC Power Port, Motion Out, PIR Out,Face Out,Emergency Out, COM/NO/NC/GND,Alarm In, Alarm Out |
