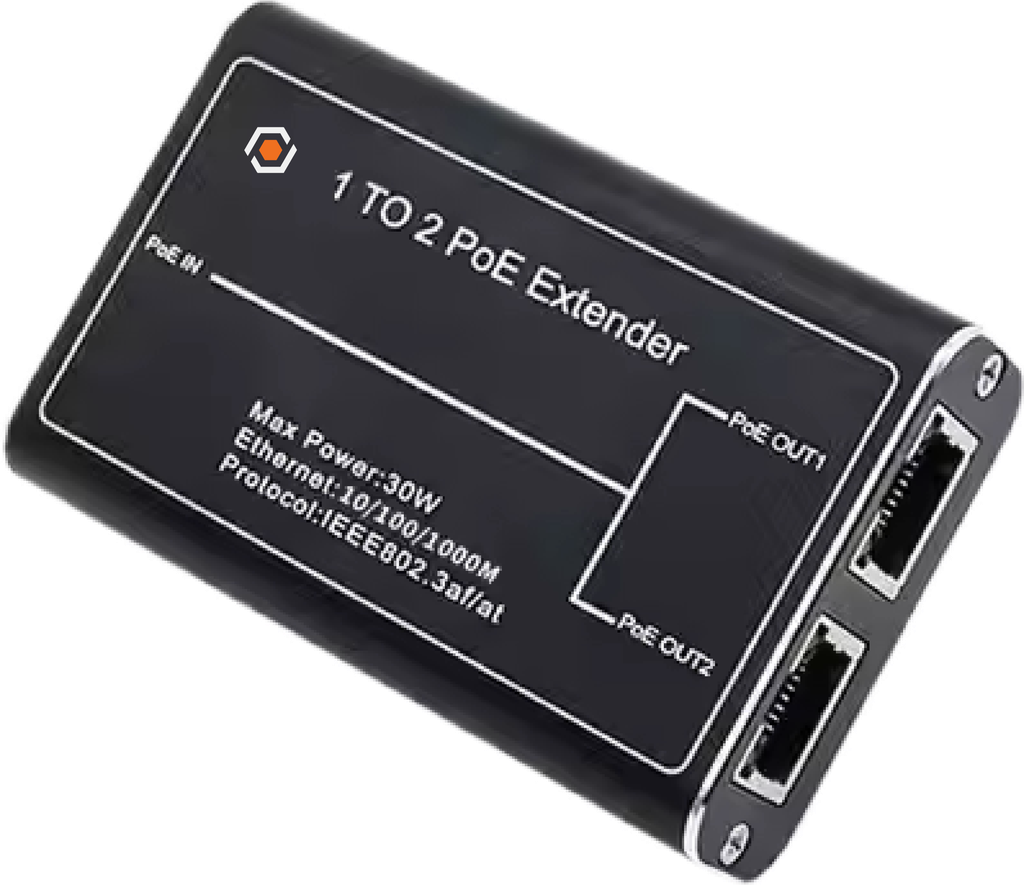

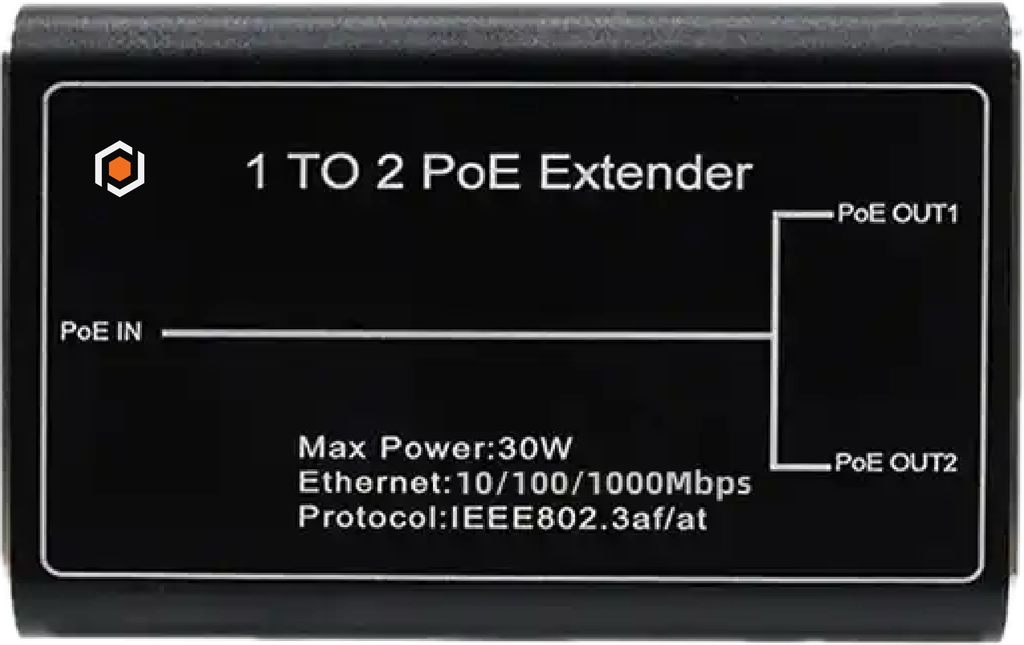

EXT-2POE

http://gsdgroupinc.com/web/image/product.template/537/image_1920?unique=15abf98
Download the Smart Guardian App
(0 review )

Two-Way Audio

You can easily communicate in real-time through the app. Whether you’re speaking or listening, the audio feature allows for seamless, two-way communication, ensuring that both parties can hear and respond instantly.

Learn more

Alarms

Arm and activate your alarm relays, deterrence lights, and sirens instantly through the Smart Guardian app. With just a few taps, you can ensure your property is fully secured, deterring potential intruders and triggering an immediate response.

Discover more

Remote Setup

With remote setup, you can complete your entire system configuration directly through the app, eliminating the need for connecting to a separate monitor or physical device. Our app gives you full control, ensuring a smooth, hassle-free setup experience without any extra equipment.

Learn more

Instant Notifications

Receive real-time alerts for various events, including alarm triggers, human and vehicle detections, movement, face recognition matches, hard disk errors, and video loss. Tailor your notifications to ensure you’re always updated on what’s happening.

Discover more

PRODUCT SPECIFICATIONS

GENERAL
Working Temperature -10°C~ 70°C (32°F~127°F)
Storage Temperature -40°C~85°C (-97°F~142°F)
PRODUCT SPECIFICATIONS
Standards/Protocols IEEE 802.3u, IEEE 802.1Q,IEEE 802.1p,IEEE 802.3af/at
Exchange Capacity 0.6Gbps
CONNECTIONS
Chip Scheme RTL8305NB+SD4923E
Network Media Unshielded Class 3,4 and 5 twisted pair (max 100m) 100BASE-TX/100BASE-T
Joggle One 10/100/1000M RJ45 port (Auto Negotiation/Auto MDI/MDIX) One 10/100/1000M RJ45 port (Auto Negotiation/Auto MDI/MDIX) One 10/100M UP-LINK RJ45 port (Auto Negotiation/Auto MDI/MDIX)
Cascade The output port is cascade
Forward Mode Store-and-forward
Mac Address Empty amount 1K
Package Forwarding Rate 0.447Mpps
Package Cache 768 Kbits
Giant Frame 2048 bytes
POE Input/Output Port Supports 4 core / 8 core power supply
Power Pin 1/2 ,4/5 (+) 3/6, 7/8 (-)
POE Port Output Power 30W
Quiescent Dissipation 0.2W
Working Humidity 10%~90% noncondensing
Store Humidity 5%~95% noncondensing
Housing Material Metal Case
Video Recorders
POE Ports 2

DOWNLOAD

DATA SHEET
EN_DATASHEET_EXT-2POE_2024-12-12.pdf Download
FR_DATASHEET_EXT-2POE_2024-12-12.pdf Download
