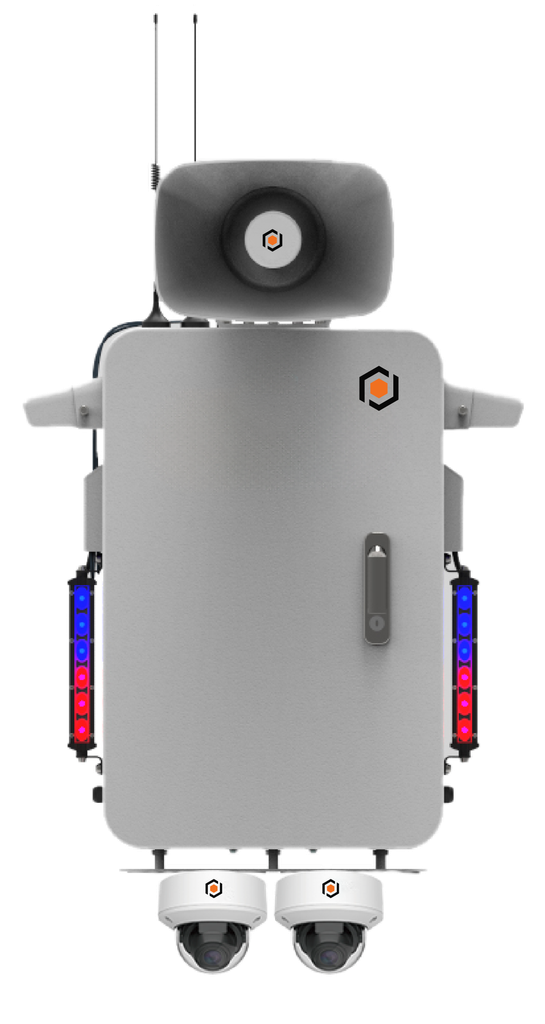

DETBOX

http://gsdgroupinc.com/web/image/product.template/522/image_1920?unique=d863d07
  • Icon DOUBLE DETERRENCE LIGHTS
  • Icon NVR INTERNAL SPACE
  • Icon OPTIONAL 30W OUTDOOR HORN SPEAKER
  • Icon OPTIONAL 4G/5G ROUTER WITH SUPPORT
  • Icon SUPPORTS 4 CAMERAS
  • Icon POLE MOUNTING CLAMPS INCLUDED
Download the Smart Guardian App
(0 review )

Two-Way Audio

You can easily communicate in real-time through the app. Whether you’re speaking or listening, the audio feature allows for seamless, two-way communication, ensuring that both parties can hear and respond instantly.

Learn more

Alarms

Arm and activate your alarm relays, deterrence lights, and sirens instantly through the Smart Guardian app. With just a few taps, you can ensure your property is fully secured, deterring potential intruders and triggering an immediate response.

Discover more

Remote Setup

With remote setup, you can complete your entire system configuration directly through the app, eliminating the need for connecting to a separate monitor or physical device. Our app gives you full control, ensuring a smooth, hassle-free setup experience without any extra equipment.

Learn more

Instant Notifications

Receive real-time alerts for various events, including alarm triggers, human and vehicle detections, movement, face recognition matches, hard disk errors, and video loss. Tailor your notifications to ensure you’re always updated on what’s happening.

Discover more

PRODUCT SPECIFICATIONS

CAMERA
IP Rating IP67
NETWORK
Protocol IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac , IEEE802.11a IEEE 802.3, IEEE 802.3u
Interface 1 PCI-E slot | 1 SIM card slot | 1 USB 2.0 port | 1 Micro SD card slot 1 10/100M WAN port(Auto MDI/MDIX) | 4 10/100M LAN port(Auto MDI/MDI)
GENERAL
Material Fire-Proof Housing, Rain&Dust Proof , Aluminum
Power 18W
Mounting Pole (4 clamps included) and Wall Mount
Box Dimension 39cm(width) x 54cm(height) x 20cm(depth)
Weight 12.4kg
Operating Temperature TBD
Network Cameras
Speaker Optional Choice, 30W Outdoor Horn Speaker
4G ROUTER (OPTIONAL)
Band & Frequency B2/B4/B5/B12/B13/B14/B66 /B71 | WCDMA
RT Power 802.11b 18dBm±2dBm | 802.11g 15dBm±2dBm | 802.11n 15dBm±2dBm
Reception Frequency -83dBm@10% PER | 802.11g
Work Channel 1-13
Wireless Rate Max 300Mbps
Work Frequency 2.4GHz
Antenna 4G Omni Direction Antenna x2, Wi-Fi Omni Direction Antenna is optional choice
Button Reset/WPS
SIREN
DB 95 (optinal speaker)
STROBE LIGHT
Red & Blue Yes
EMBEDDED FAN
MTBF 10 Years (Triggers automatically at 30 degrees)

DOWNLOAD

DATA SHEET
EN_DATASHEET_DETBOX_2024-09-09.pdf Download
FR_DATASHEET_DETBOX_2024-09-09.pdf Download
