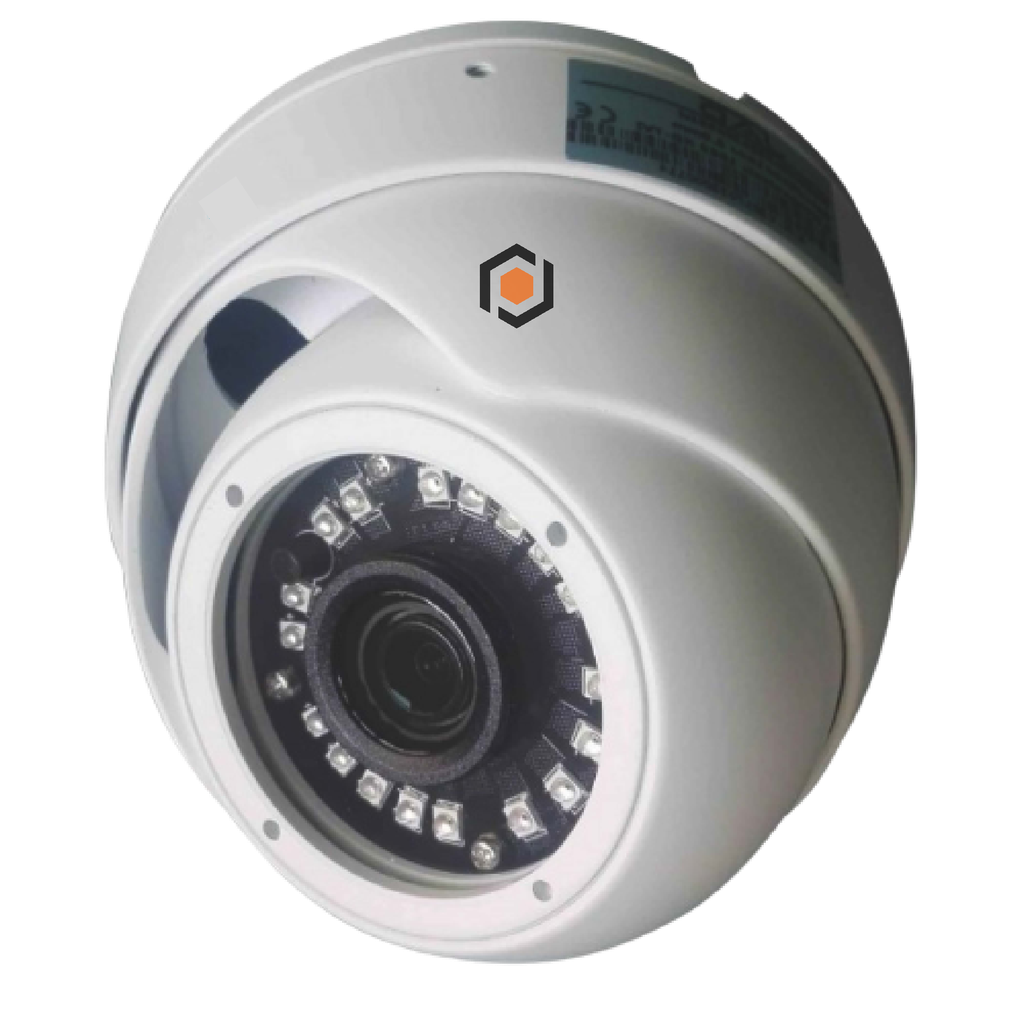

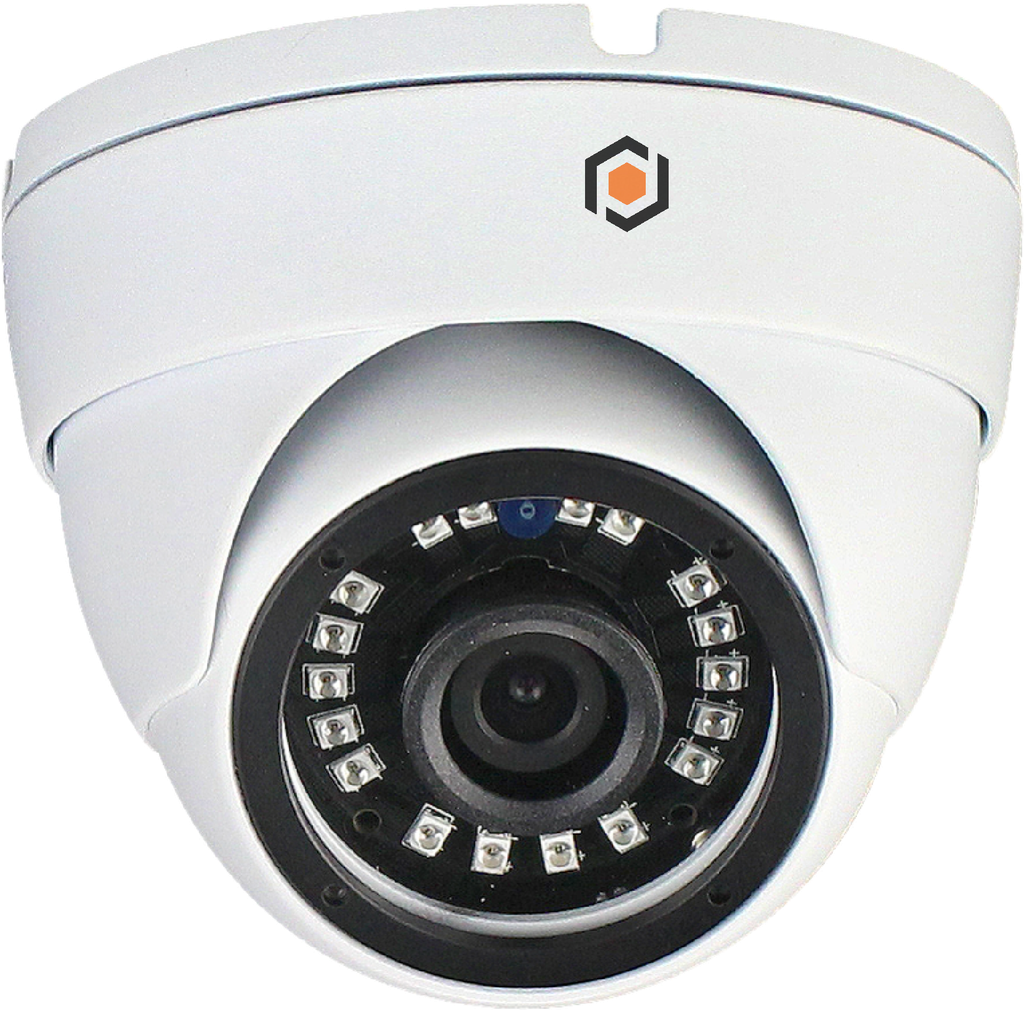

EB2FD28TVI-5MP

http://gsdgroupinc.com/web/image/product.template/472/image_1920?unique=15abf98
  • Icon IR UP TO 20M
  • Icon 5MP RESOLUTION
  • Icon 2.8MM LENS
  • Icon TVI-CVI-AHD-960H
Download the Smart Guardian App
(0 review )

Two-Way Audio

You can easily communicate in real-time through the app. Whether you’re speaking or listening, the audio feature allows for seamless, two-way communication, ensuring that both parties can hear and respond instantly.

Learn more

Alarms

Arm and activate your alarm relays, deterrence lights, and sirens instantly through the Smart Guardian app. With just a few taps, you can ensure your property is fully secured, deterring potential intruders and triggering an immediate response.

Discover more

Remote Setup

With remote setup, you can complete your entire system configuration directly through the app, eliminating the need for connecting to a separate monitor or physical device. Our app gives you full control, ensuring a smooth, hassle-free setup experience without any extra equipment.

Learn more

Instant Notifications

Receive real-time alerts for various events, including alarm triggers, human and vehicle detections, movement, face recognition matches, hard disk errors, and video loss. Tailor your notifications to ensure you’re always updated on what’s happening.

Discover more

PRODUCT SPECIFICATIONS

CAMERA
Min. Illumination (Day) Color 0.01Lux@F1.2
Min. Illumination (Night) B/W 0.001 Lux@F1.2
S/N Ratio More than 50dB (AGC OFF)
IR Distance 20M
IR ON/OFF Control Auto
IR LEDS 18 pieces IR LEDs
OPERATIONAL
Electronic Shutter Speed 1/25s~1/50,000s , 1/30s~1/60,000s
Gain Control AGC
White Balance Auto
NETWORK
Resolution 2592*1944
Video Output BNC
GENERAL
Power Supply DC12V
Power Consumption 600mA max., IR Off
Operating Conditions -10°C ~ +50°C RH95% Max
Storage Conditions 20°C ~ +60°C RH95% Max
Material Metal
Dimensions 92mmx64mm
Weight 360g
OPTICAL MODULE
WDR DWDR
VIDEO & AUDIO
Frame Rate 25/30fps
Audio Interface No
LENS
Lens Type 2.8mm
Mount Type Fixed
Focal Length No
Max. Aperture F2.0
Angle Of View 120°
Focus Control No
VIDEO
Imaging Device 1/2.7” CMOS (SC4653 )
Effective Pixels 5.0 Mega Pixels
Scanning System progressive scanning
Video Signal TVI / AHD / CVI / 960H
Day/Night Yes
OSD Menu Yes
BLC Mode Yes
Noise Reduction 3D
Smart IR Yes

DOWNLOAD

DATA SHEET
EN_DATASHEET_EB2FD28TVI-5MP_2024-09-18.pdf Download
FR_DATASHEET_EB2FD28TVI-5MP_2024-09-18.pdf Download
