SEE IN COLOR AT NIGHT
PRODUCT SPECIFICATIONS
| CAMERA | |
| IR Distance | 30M |
| OPERATIONAL | |
| Audio | Audio over coaxial |
| Audio Range | 7m |
| Warmlight Viewable Length | Up to 20m |
| On Screen Display | English |
| Day & Night | Ext / Color / B/W |
| Backlight Compensation | Off / User BLC |
| Wide Dynamic Range | N/A |
| Digital Noise Reduction | 2D DNR |
| Gain Control | Auto |
| White Balance | ATW |
| Electronic Shutter Speed | Auto |
| Reverse | Mirror |
| Video Transmission Distance | MAX 300M (RG-6) |
| NETWORK | |
| Video Output | BNC |
| Resolution | 5MP 2592 (H) ×1944 (V) |
| Max. Framerate | 5MP@20fps 4AHD/4CVI/4TVI |
| GENERAL | |
| Operating Temperature/Humidity | -30°C ~ 55°C / 90% |
| Ingress Protection | IP66 |
| Input Voltage / Current | 12V DC |
| Power Consumption | IR OFF ≤1W, IR ON ≤4W |
| Color/material | metal |
| Dimensions | Ø100x90mm |
| Weight | appr 410g |
| VIDEO & AUDIO | |
| Remote Control Interface | ACP (AHD Coax Protocol) |
| LENS | |
| Focal Length (Zoom Ratio) | 2.8 mm |
| Max. Aperture Ratio | F1.0 |
| Angular Field Of View | 96.51° / V |
| Min. Object Distance | 2m |
| Lens Type | Fixed lens |
| VIDEO | |
| Imaging Device | 1/2.7” Progressive CMOS |
| Total Pixels | 2608 (H) × 1960 (V) |
| Effective Pixels | 2608 (H) × 1960 (V) |
| Scanning System | progressive scanning |
| Min. Illumination | 2608 (H) × 1960 (V) |
| LAWS AND REGULATIONS | |
| Safety | CE LVD |
| EMC | CE EMC, FCC |
| ROHS | RoHS2.0 |
| COLOR | |

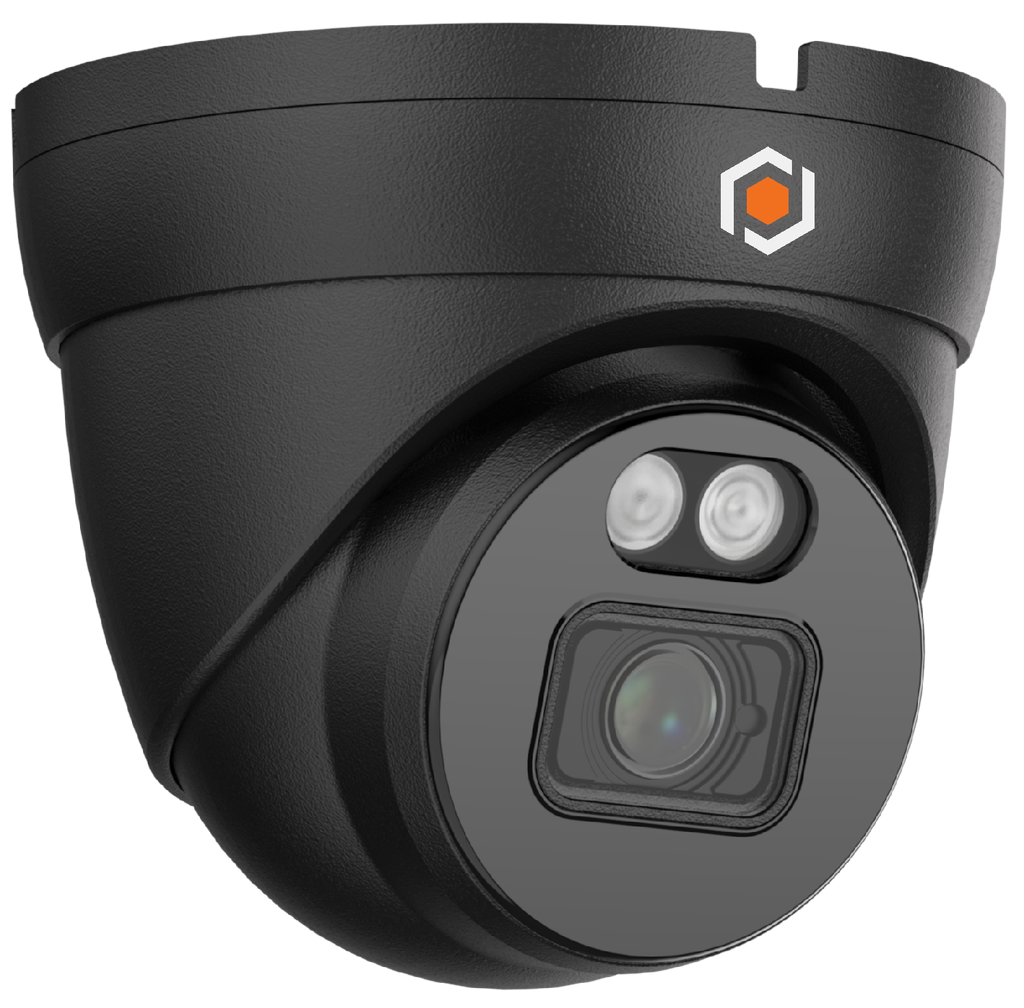

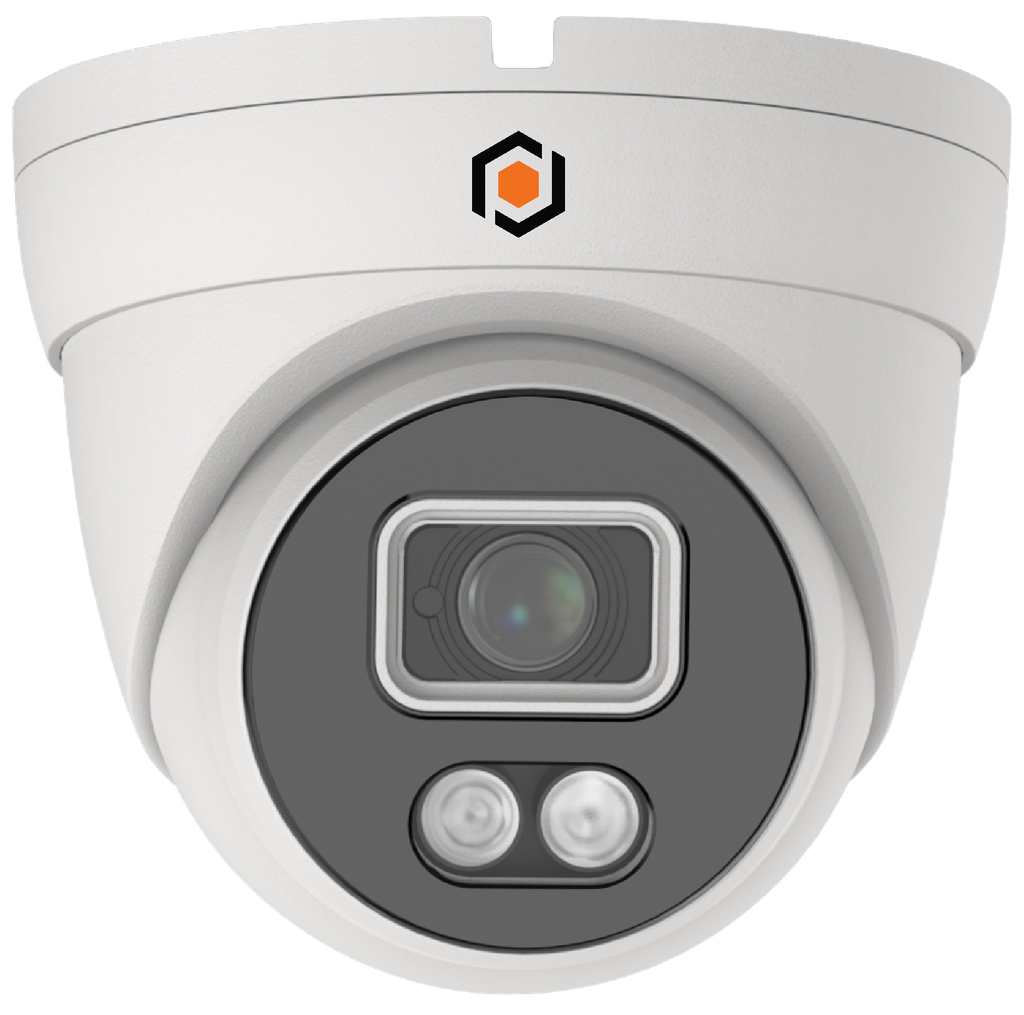

| Color | WHITE , BLACK |
