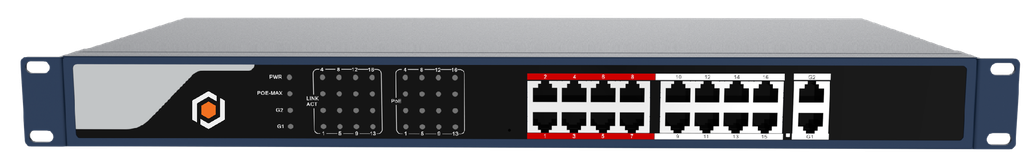

SWC18POE-MAN
-
P2P CONNECTION
-
VISUAL MANAGEMENT THROUGH THE VMS
-
TOPOLOGICAL DIAGRAM ON VMS PRO
-
EXTENDED TRANSMISSION UP TO 250M
-
MAX 10 LEVELS OF CASCADES
-
DEVICE MONITORING
-
RED PORT PRIORITY
-
REAL TIME NOTIFICATIONS
Download the
Smart Guardian App
16 PORTS | POE | 2 UPLINKS | 230W | RACKMOUNT | 120-240V | BANDWITH GIGA
PRODUCT SPECIFICATIONS
| Interfaces | 16x10/100M POE+2x100/1000M Gigabit Ethernet |
| Network Management | Lite Manager (CMS connection ,POE power consumer statistics, parameter configuration, log checking, firmware update, network topology) |
| IEEE Standard | IEEE 802.3\802.3u\802.3ab\802.3x\ 802.3z\802.3af\802.3at |
| Uplink Rate (Individual Port) | 1000M |
| Downlink Rate (Individual Port) | 1000M |
| Exchange Capacity | 7.2Gbps |
| Packet Forwarding Rate | 5.36Mpps |
| Internal Cache | 2.75Mbits |
| POE Standard | IEEE 802.3at/af |
| POE Port | 1~16 |
| Extension Mode (EPOE) | 250 Meters |
| Max. Power (Individual Port) | 30W |
| Max. Power (All Ports) | 230W |
| Case | Metal |
| Weight | 2861g |
| Dimension (WXHXD) | 440*221*44mm |
| Operating Temperature/Humidity | -10°C~+50°C; Humidity |
| Storage Temperature/Humidity | -40°C~+85°C; Humidity |
| Power Supply | 100~240VAC 50/60Hz Max4A 52V/4.8A 250W |
| Lightning Protection | 4KV |
