  2. GSD-NVROV6K-16-N

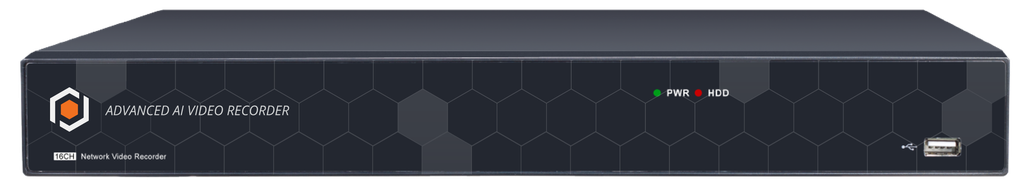

GSD-NVROV6K-16-N

http://gsdgroupinc.com/web/image/product.template/149/image_1920?unique=3a7fcae
  • Icon 4K HDMI OUTPUT
  • Icon ONVIF COMPLIANT (G/M/S/T)
  • Icon 16 POE PORTS + E-POE
  • Icon UP TO 12MP
  • Icon 2HDD SLOTS UP TO 18TB
  • Icon ALARM 16 IN/4 OUT
  • Icon 2X HDMI OUTPUTS
  • Icon RACKMOUNT
FIND A DISTRIBUTOR FIND AN INSTALLER
NDAA Onvif GST CE FCC
Download the Smart Guardian App
APP STORE GOOGLE PLAY
(0 review )

UP TO 12MP | 16 PORTS | 320 BANDWIDTH | 16 ALARMS | A.I | 16 POE | OV CONNECT | RACKMOUNT | NDAA


PRODUCT SPECIFICATIONS

OPERATIONAL
AI Features HUMAN & VEHICLE DETECTION STATIONARY OBJECT DETECTION LICENSE PLATE DETECTION HEAT MAP CROWD DENSITY DETECTION NOISE DETECTION VIDEO TAMPERING CROSS COUNTING INTRUSION DETECTION REGION ENTRANCE & EXITING QUEUE LENGTH DETECTION AI REGISTERED QUANTITY 10,000 INSTANT NOTIFICATIONS AI MAX CAPTURED QUANTITY 200,000 PERIMETER INTRUSION DETECTION LINE CROSSING DETECTION FACE DETECTION RARE SOUND DETECTION
Audio 1 in / 1 out
NETWORK
Web IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above
Protocols TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, UPnP, HTTP, HTTPS, Onvif (profile G/M/S/T)
Ethernet 2 RJ45 100/1000 Base-T
GENERAL
POE 16*RJ45, 100 Base-T 802.3at/af
OSD Language English/French/Spanish/Portuguese/German/Italian/Greek/Danish/Finnish/ Russian/Hebrew/Turkish/Bulgarian/Arabic/Korean/Japanese/Thai/Hindi/ Romanian/Dutch/Polish/Persian/Hungarian/Chinese/Ukrainian
Dimension (WXHXD) 378*317*50mm
Weight 2975g
Input Voltage / Current ATX 280W
Power Consumption (Excluding Hard Disk) 12W
Operating Temperature/Humidity -10°C~+50°C (14°F ~ 122°F) Humidity
FCC Yes
CE Yes
HARD DRIVES
Hard Drive PURPLE NO PURPLE HDD , 2TB , 4TB , 8TB , 16TB
VIDEO
Input Bandwidth 320M
Output Bandwidth 320M
INTERFACE
P/W Reset Yes
VGA 1(1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080)
HDMI 1(1024*768, 1280*720, 1280*1024, 1440*900,1600*1200,1920*1080, 1920*1200, 2560*1440(2K), 3840*2160(4K)) 1(1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 /EDID) Async out
PERFORMANCE
Recording Resolution 12MP/8MP/5MP/4MP/3MP/1080p/720p
Recording Compression G.711a,G.711u Video
Speed 30fps 8MP
Playback 480fps Max 16CH
Voice Command Google Assistant, Amazon Alexa

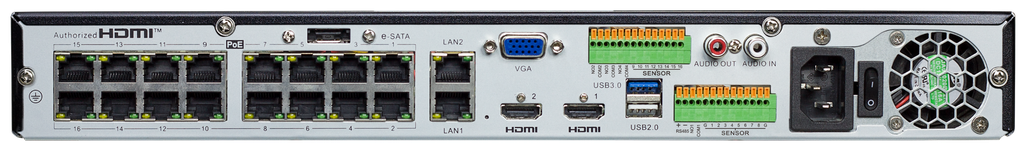

CONNECTIONS
USB USB2.0*1(front) USB3.0*1+USB2.0*1(rear)
E-SATA 1
HDD 2 SATA HDDs, up to 18TB each HDD
RS485 1
Alarm Input/Out 16 in / 4 out
