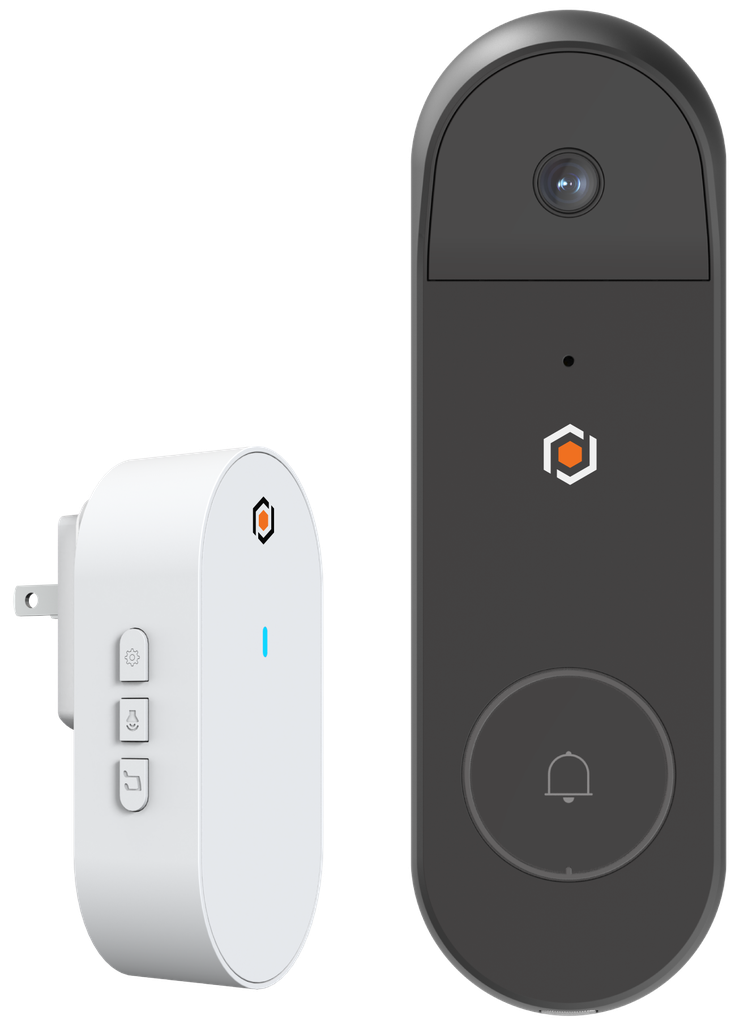

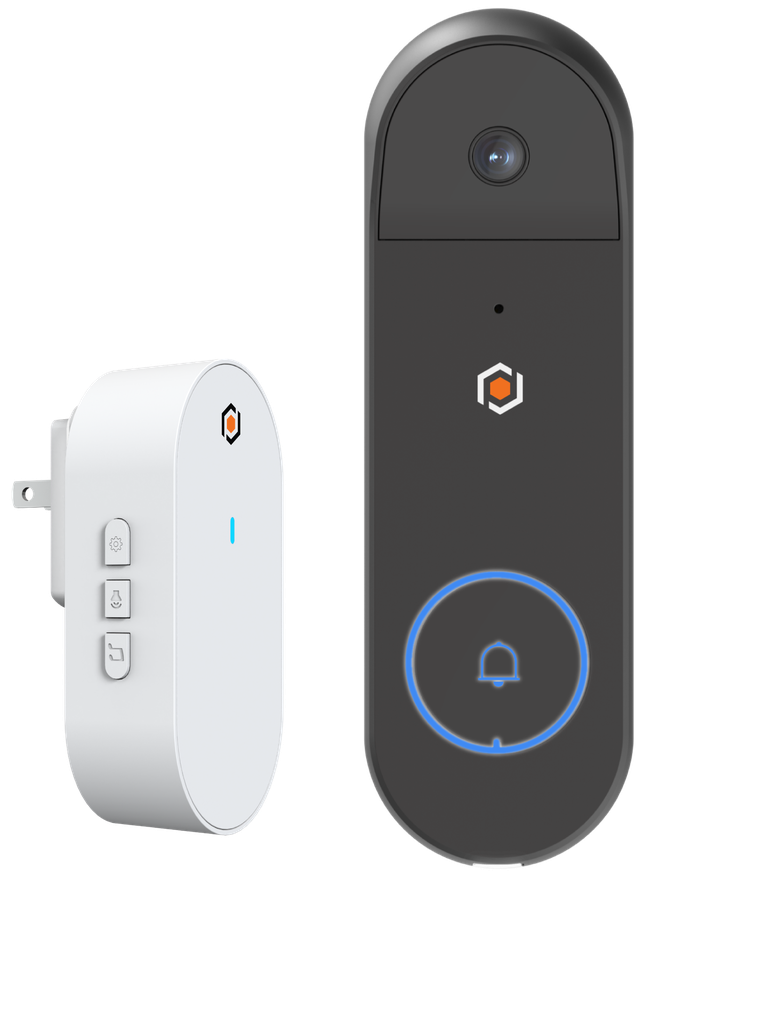

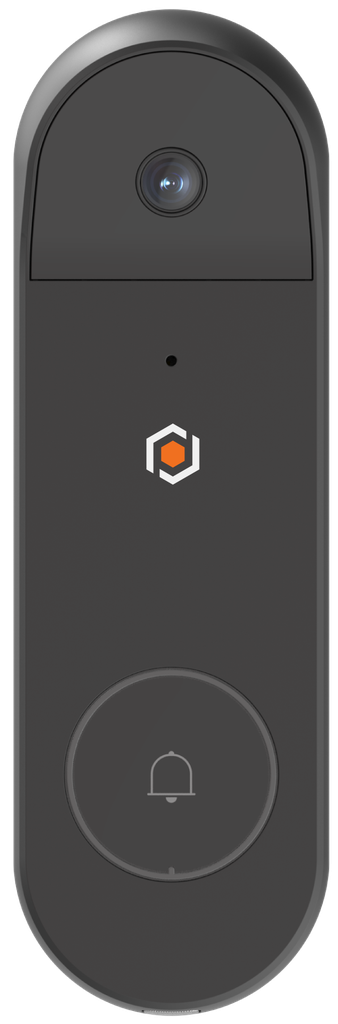

DBWL5MP-POE
-
MICRO SD CARD SLOT UP TO 256 GB
-
TWO-WAY COMMUNICATION
-
5MP RESOLUTION
-
BUILT-IN SPEAKER & MICROPHONE
-
WIRELESS DOORBELL
-
HUMAN&PACKAGE DETECTION
-
APP NOTIFICATIONS
-
MATRIX LED UP TO 30M
-
DUAL WIDE ANGLE VIEW 160°
Download the Smart Guardian App
DOORBELL WIFI | 5MP | LENS 2,1MM | V. ANGLE : V:156°-H:81°-D:192° | BELL INC. | AI | POE | INPUT PWR 8-24V | NDAA
Two-Way Audio
You can easily communicate in real-time through the app. Whether you’re speaking or listening, the audio feature allows for seamless, two-way communication, ensuring that both parties can hear and respond instantly.
Alarms
Arm and activate your alarm relays, deterrence lights, and sirens instantly through the Smart Guardian app. With just a few taps, you can ensure your property is fully secured, deterring potential intruders and triggering an immediate response.
Discover moreRemote Setup
With remote setup, you can complete your entire system configuration directly through the app, eliminating the need for connecting to a separate monitor or physical device. Our app gives you full control, ensuring a smooth, hassle-free setup experience without any extra equipment.
Learn more
Instant Notifications
Receive real-time alerts for various events, including alarm triggers, human and vehicle detections, movement, face recognition matches, hard disk errors, and video loss. Tailor your notifications to ensure you’re always updated on what’s happening.
Discover morePRODUCT SPECIFICATIONS
| CAMERA | |
| Imaging Sensor | 1/2.7” Progressive Scan CMOS |
| Image Size | 5MP 1944(H)×2592(V) |
| IRIS Type | Fixed IRIS |
| HLC | Yes |
| Doorbell Button | Yes |
| Indicator | Yes |
| OPERATIONAL | |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| Video Bit Rate | 256Kbps ~ 6Mbps |
| On-Board Storage | 1CH built-in micro SD card slot, up to 512GB |
| Remote Monitoring | Web client/CMS remote control/Moblie App |
| AI Features | Human Detection, Package Detection, Loitering Detecion |
| NETWORK | |
| Video Compression | H.265/H.264/MJPEG |
| Main Stream | 20fps @ 1944 x 2592,1800 x 2400 (Default) |
| Sub-Stream | 20fps @ 960 x 1280 |
| Audio Compression | G711A, G711U |
| Reset Button | Yes |
| WIFI | Supports 2.4G/5G WiFi |
| Online Connection | Supports simultaneous monitoring for up to 5 users Supports multi-stream real time transmission |
| GENERAL | |
| Ingress Protection | IP65 |
| Power | AC/DC 16-24V |
| Power Consumption | Max. 9.84W |
| Environment | less than 90% (non-condensing) |
| Net Weight | 115.3g |
| Installation | Wall Mounted |
| Input Voltage / Current | AC 100~240 V; 50~60 Hz |
| THERMAL MODULE | |
| Max. Resolution | 1944 x 2592, 1800 x 2400, 960 x 1280 |
| Network Cameras | |
| Lens | Vertical |
| VIDEO & AUDIO | |
| Network Interface | 100M Rj45 |
| Audio Interface | Built-in MIC×1, built-in speaker×1 |
| FUNCTION | |
| Interface Protocol | ONVIF |
| General Function | Video mask, Motion |
| White Light Distance | 1m |
| IR Light Distance | 3m |
| LENS | |
| Lens Mount | M8 |
| IMAGE | |
| Wide Dynamic Range (WDR) | Yes |
| H.264 COMPRESSION STANDARD | Baseline Profile/Main Profile/High Profile |
| Bit Rate Type | VBR/CBR |
| Image Settings | Saturation, hue, brightness, contrast, sharpness, 3DNR |
| VIDEO | |
| Min. Illumination | 0 lux (white LED ON) |
| BLC Mode | Yes |
| PRODUCT SPECIFICATIONS | |
| POE Power | Yes |
| IPCOAX4C-300M | |
| Dimensions(mm) | 146x46x30mm (5.75”x1.81”x1.18”) |
| EXTPOE | |
| Network Protocol | UDP , IPv4, DHCP , NTP , RTSP , DDNS, SMTP , UPnP , HTTPS, HTTP |
| 4G ROUTER (OPTIONAL) | |
| Button | Seting up/Selecting ringtones/Adjusing volume |
| COLOR | |
| Color | BLACK |

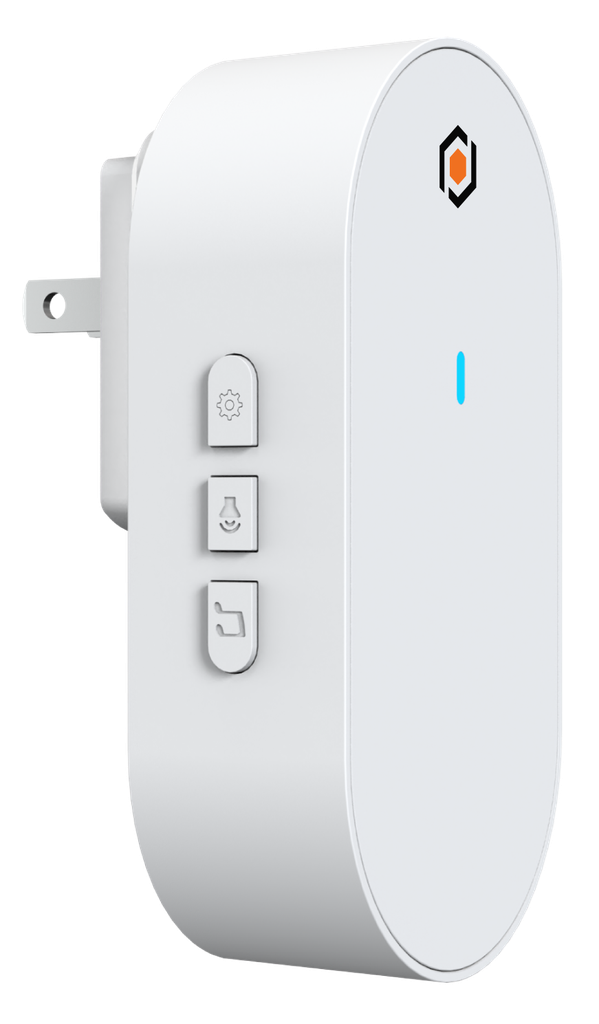

| CHIME | |
| Transmission Mode | RF 433 Mhz |
DOWNLOAD
| DATA SHEET | |
| EN_DATASHEET_DBWL5MP-POE_2025-03-04 (2).pdf | Download |
