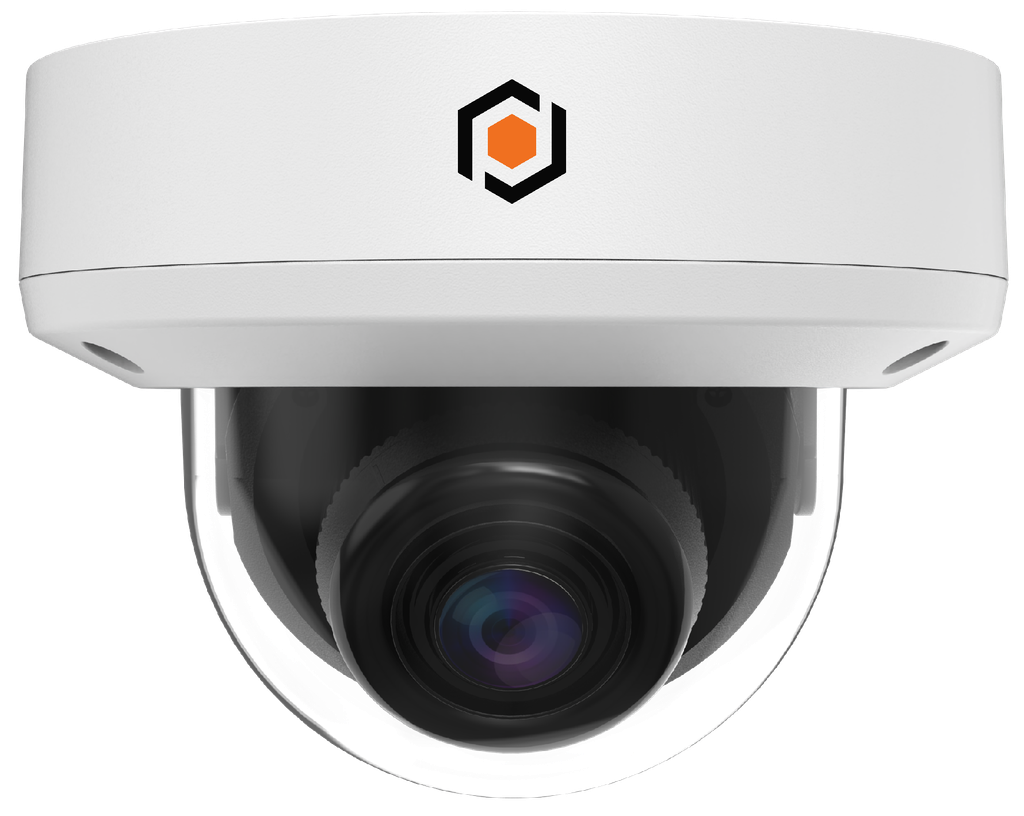

IR up to 30M
PRODUCT SPECIFICATIONS
| CAMERA | |
| IR Distance | 35M |
| OPERATIONAL | |
| On Screen Display | English |
| Day & Night | Ext / Color / B/W |
| Backlight Compensation | Off / User BLC |
| Wide Dynamic Range | DWDR (Off/On) |
| Digital Noise Reduction | 2D DNR |
| Gain Control | Auto |
| White Balance | ATW |
| Electronic Shutter Speed | Auto |
| Reverse | Mirror |
| Video Transmission Distance | MAX 300M (RG-6) |
| NETWORK | |
| Video Output | BNC |
| Resolution | 5MP 2592 (H) ×1944 (V) |
| Max. Framerate | 5MP@20fps 4AHD/4CVI/4TVI |
| GENERAL | |
| Operating Temperature/Humidity | -30°C ~ 55°C / 90% |
| Ingress Protection | IP66 |
| Input Voltage / Current | 12V DC |
| Power Consumption | IR OFF ≤1W, IR ON ≤4W |
| Dimensions | Ø148.7x109mm |
| Weight | appr 930g |
| VIDEO & AUDIO | |
| Remote Control Interface | ACP (AHD Coax Protocol) |
| LENS | |
| Focal Length (Zoom Ratio) | Motorized lens 2.8-12mm |
| Max. Aperture Ratio | F1.8-3.3 |
| Angular Field Of View | 106.6°-34.6°/V |
| Min. Object Distance | 1.2m (W/T) |
| Lens Type | Motorized lens |
| VIDEO | |
| Imaging Device | 1/2.7” Progressive CMOS |
| Total Pixels | 2608 (H) × 1960 (V) |
| Effective Pixels | 2608 (H) × 1960 (V) |
| Scanning System | progressive scanning |
| Min. Illumination | Color 0.04lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON |
| LAWS AND REGULATIONS | |
| Safety | CE LVD |
| EMC | CE EMC, FCC |
| ROHS | RoHS2.0 |
