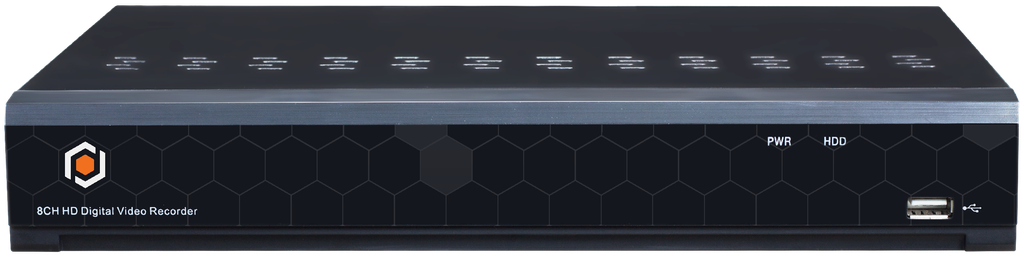

GSD-DVRFNC4K-08-N

http://gsdgroupinc.com/web/image/product.template/308/image_1920?unique=b9460b7
  • Icon 8MP RESOLUTION
  • Icon SPOT MONITOR OUT ON BNC
  • Icon 1HDD SLOT UP TO 16TB
  • Icon ONVIF ENCODER
  • Icon 4K HDMI RESOLUTION
  • Icon UP TO 12 IP CAMERAS
  • Icon P2P MOBILE CONNECTION
  • Icon ALARMS 8 IN/1 OUT
Download the Smart Guardian App
(0 review )

Two-Way Audio

You can easily communicate in real-time through the app. Whether you’re speaking or listening, the audio feature allows for seamless, two-way communication, ensuring that both parties can hear and respond instantly.

Learn more

Alarms

Arm and activate your alarm relays, deterrence lights, and sirens instantly through the Smart Guardian app. With just a few taps, you can ensure your property is fully secured, deterring potential intruders and triggering an immediate response.

Discover more

Remote Setup

With remote setup, you can complete your entire system configuration directly through the app, eliminating the need for connecting to a separate monitor or physical device. Our app gives you full control, ensuring a smooth, hassle-free setup experience without any extra equipment.

Learn more

Instant Notifications

Receive real-time alerts for various events, including alarm triggers, human and vehicle detections, movement, face recognition matches, hard disk errors, and video loss. Tailor your notifications to ensure you’re always updated on what’s happening.

Discover more

PRODUCT SPECIFICATIONS

OPERATIONAL
Audio 8 in /1 out
NETWORK
Web IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above
Ethernet 1 RJ45 100/1000 Base-T
GENERAL
OSD Language EN/FR/ES/DN/TC/IN/JP/KR
Dimension (WXHXD) 300X220X53mm
Input Voltage / Current DC12V/2A
Power Consumption (Excluding Hard Disk) 11W
Operating Temperature/Humidity -10°C~+50°C (14°F ~ 122°F) Humidity
INTERFACE
P/W Reset Press 10 seconds
VGA 1 (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080)
HDMI 1(1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 , 2560*1440, 3840*2160/EDID)
RECORDING BANDWIDTH
Inputs 32Mbps ~96Mbps Decrease one Analog channel can increase 8Mbps Analog channel and digital channel can be converted
Out 96Mbps
Analog-Video-Input 8CH inputs
PERFORMANCE
Compression G.711a Video
Display Resolution 4K/4MP/1080P/720P Single IP channel preview up to 4K 30 fps
Speed 8MP
Event MD (Sensitivity Level 1~8) Videlo loss Beep, Email, Push notification to Mobile APP
Playback Function Fast forward / backward (2x, 4x, 8x,16X) Slow forward (1/2x, 1/4x, 1/8x,1/16x)
Playback 72fps (Max 8CH playback) 5MP
UI/MONITORING
Local UI5.0
Mobile Viewer SMART GUARDIAN
Push Notifications Yes
BNC 1 (704*576)
CONNECTIONS
USB USB2.0*1(front) USB3.0*1+(rear)
HDD 1 SATA HDD, up to 16TB
RS485 1
Alarm Input/Out 8 in /1 out
LIVE
IP Video Input 4ch,(only IP up to 12ch)
Composite Video Input Up to 12ch (Analog video + IP video)

DOWNLOAD

DATA SHEET
EN_DATASHEET_GSD-DVRFNC4K-08-N_2025-01-06.pdf Download
FR_DATASHEET_GSD-DVRFNC4K-08-N_2025-01-06.pdf Download
FIRMWARE
GSD-DVRFNC4K-08-N_Firmware_2022-02-24 Download
GSD-DVRFNC4K-08-N_Firmware_2022-03-07 Download
GSD-DVRFNC4K-08-N_Firmware_2023-12-14 Download
