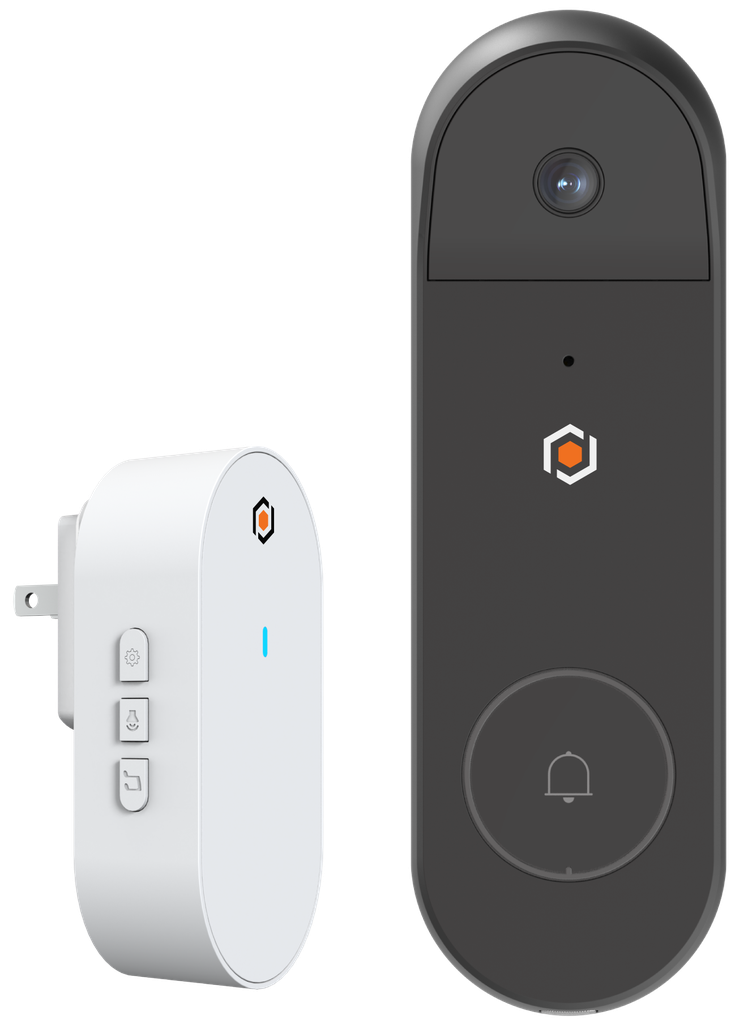

DBWL5MP-POE
-
MICRO SD CARD SLOT UP TO 256 GB
-
TWO-WAY COMMUNICATION
-
5MP RESOLUTION
-
BUILT-IN SPEAKER & MICROPHONE
-
WIRELESS DOORBELL
-
HUMAN&PACKAGE DETECTION
-
APP NOTIFICATIONS
-
MATRIX LED UP TO 30M
-
DUAL WIDE ANGLE VIEW 160°
Download the
Smart Guardian App
DOORBELL WIFI | 5MP | LENS 2,1MM | VIEWING ANGLE : V:156° - H:81° - D:192° | SD CARD UP TO 256GB | BELL INCLUDED | AI | POE | INPUT PWR 8-24V | BLACK | NDAA
PRODUCT SPECIFICATIONS
| Color | BLACK |
| Imaging Sensor | 1/2.7” Progressive Scan CMOS |
| Image Size | 5MP 1944(H)×2592(V) |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| IRIS Type | Fixed IRIS |
| Min. Illumination | 0 lux (white LED ON) |
| Lens | Vertical |
| Lens Mount | M8 |
| Wide Dynamic Range (WDR) | Yes |
| BLC Mode | Yes |
| HLC | Yes |
| Video Compression | H.265/H.264/MJPEG |
| H.264 COMPRESSION STANDARD | Baseline Profile/Main Profile/High Profile |
| Video Bit Rate | 256Kbps ~ 6Mbps |
| Bit Rate Type | VBR/CBR |
| Max. Resolution | 1944 x 2592, 1800 x 2400, 960 x 1280 |
| Main Stream | 20fps @ 1944 x 2592,1800 x 2400 (Default) |
| Sub-Stream | 20fps @ 960 x 1280 |
| Image Settings | Saturation, hue, brightness, contrast, sharpness, 3DNR |
| Audio Compression | G711A, G711U |
| Network Interface | 100M Rj45 |
| Audio Interface | Built-in MIC×1, built-in speaker×1 |
| Reset Button | Yes |
| On-Board Storage | 1CH built-in micro SD card slot, up to 512GB |
| WIFI | Supports 2.4G/5G WiFi |
| Doorbell Button | Yes |
| Indicator | Yes |
| Remote Monitoring | Web client/CMS remote control/Moblie App |
| Online Connection | Supports simultaneous monitoring for up to 5 users Supports multi-stream real time transmission |
| Network Protocol | UDP , IPv4, DHCP , NTP , RTSP , DDNS, SMTP , UPnP , HTTPS, HTTP |
| Interface Protocol | ONVIF |
| AI Features | Human Detection, Package Detection, Loitering Detecion |
| General Function | Video mask, Motion |
| White Light Distance | 1m |
| IR Light Distance | 3m |
| Ingress Protection | IP65 |
| Power | AC/DC 16-24V |
| POE Power | Yes |
| Power Consumption | Max. 9.84W |
| Environment | less than 90% (non-condensing) |
| Dimensions(mm) | 146x46x30mm (5.75”x1.81”x1.18”) |
| Net Weight | 115.3g |
| Installation | Wall Mounted |
| Input Voltage / Current | AC 100~240 V; 50~60 Hz |
| Transmission Mode | RF 433 Mhz |
| Button | Seting up/Selecting ringtones/Adjusing volume |
| SD Card | 64GB Micro SD Card Included |
DOWNLOAD
| FIRMWARE | |
| DBWL5MP-POE-64G_FIRMWARE_VC54.24.1.3.3_2025-12-03.zip | Download |
| DATA SHEET | |
| EN_DATASHEET_DBWL5MP-POE_2025-05-06.pdf | Download |
| FR_DATASHEET_DBWL5MP-POE_2025-05-06.pdf | Download |
| USER MANUAL | |
| EN_USERMANUAL_WiFi DOORBELL_GSD_2025-05-29.pdf | Download |
| FR_USERMANUAL_WiFi DOORBELL_GSD_2025-05-29.pdf | Download |
| QUICK GUIDE | |
| EN_QUICKGUIDE_POE WIFI DOORBELL_GSD_2025-07-03.pdf | Download |
| FR_QUICKGUIDE_POE WIFI DOORBELL_GSD_2025-07-03.pdf | Download |
